Colormaps#

The cmap.Colormap type represents a colormap.

Also known as a LUT (look-up table), a colormap is a mapping from a scalar value to a color. Colormaps are used in a variety of contexts, including image processing, data visualization, and scientific visualization. The cmap library provides a number of built-in colormaps, including all of the colormaps in matplotlib, cmocean, colorbrewer, colorcet, crameri, and more.

from cmap import Colormap

# argument can be any "ColormapLike".  See rules below
cm = Colormap("viridis")

ColormapLike objects#

The following objects can be interpreted as a colormap, and used as the first argument to the cmap.Colormap constructor; cmap refers to these objects collectively as "ColormapLike". Briefly, valid arguments are of type:

• str
• Iterable[ColorLike | tuple[float, ColorLike]] (see ColorLike)
• numpy.ndarray
• dict
• Callable[[ArrayLike], ArrayLike]

str#

• A string containing a recognized colormap name.

  • Colormap('viridis')

  • Colormap('batlow')


  Matplotlib names

  Any valid matplotlib colormap key that could be used in matplotlib.colormaps[...] is also a valid cmap colormap name.

• A string containing a recognized colormap name suffixed with "_r" to reverse the colormap:

  • Colormap('viridis_r')

  • Colormap('batlow_r')


Iterable[ColorLike | tuple]#

• An Iterable of ColorLike objects:

  • Colormap(['blue', 'yellow', 'red'])

  • Colormap([(0, 0, 1.), "#FF0", "rgb(255, 0, 0)"])


  Note

  In the case of an iterable of colors, all colors are assumed to be equally spaced along the colormap.

• An Iterable of ColorLike OR tuple[float, ColorLike] objects, where the float represents the position of the color along the colormap from 0-1 (aka the "color stop"):

  • Colormap([(0, 'blue'), (0.8, 'yellow'), (1, 'red')])


  If omitted, the first and last color stops are assumed to be at 0 and 1, respectively.

  • Colormap(['blue', (0.8, 'yellow'), 'red'])


  If the first or last color stop is not at 0 or 1, the first/last color is repeated at the 0th or 1 position, respectively.

  • Colormap([(0.4, 'blue'), (0.8, 'yellow'), 'red'])



    (same as ['blue', (0.4, 'blue'), (0.8, 'yellow'), 'red'])

  If internal stops are partially provided, the missing values are assumed to be equally spaced between any provided neighboring positions (or 0 and 1, if none are provided). They are NOT placed at their global index / (len(colors) - 1).

  • Colormap(['blue', 'green', (0.8, 'yellow'), 'red'])



    (same as ['blue', (0.4, 'green'), (0.8, 'yellow'), 'red'])

numpy.ndarray#

A numpy.ndarray, in one of the following formats:

• an (N, 3) array of N RGB colors equally spaced along the colormap:

  Colormap(np.array([[0, 0, 1.], [1., 1., 0], [1., 0, 0]]))



• an (N, 4) array of N RGBA colors equally spaced along the colormap:

  Colormap(np.array([[0, 0, 1., 1.], [1., 1., 0, 0.7], [1., 0, 0, 0.3]]))



• an (N, 5) array of color stops, where the first column is the position of the color stop and the remaining 4 columns are the RGBA colors:

  Colormap(np.array([
      # pos, r,   g,   b,   a
      [0.0, 0.0, 0.0, 1.0, 1.0],
      [0.8, 1.0, 1.0, 0.0, 1.0],
      [1.0, 1.0, 0.0, 0.0, 1.0],
  ]))




dict#

• A {position -> color} dict of color stops, where the keys are the positions of the color stops and the values are the colors:

  • Colormap({0: 'blue', 0.5: 'yellow', 1: 'red'})


• A matplotlib-style segmentdata dict, with keys "red", "green", "blue", and (optionally) "alpha" and values that are either:

  • an (N, 3) array-like [[x, y0, y1], ...] where x is the color stop position, and y0 and y1 are the values of the color on either side of the stop position.

    cdict = {
        #         x     y0   y1
        "red":   [[0.0,  0.0, 0.0],
                  [0.5,  1.0, 1.0],
                  [1.0,  1.0, 1.0]],
        "green": [[0.0,  0.0, 0.0],
                  [0.25, 0.0, 0.0],
                  [0.75, 1.0, 1.0],
                  [1.0,  1.0, 1.0]],
        "blue":  [[0.0,  0.0, 0.0],
                  [0.5,  0.0, 0.0],
                  [1.0,  1.0, 1.0]],
    }
    Colormap(cdict)




  • a callable that accepts an array of 0-1 values and returns another array of 0-1 values:

    Colormap({"red": lambda x: x, "green": lambda x: x**2, "blue": lambda x: x**0.5})



Callable#

• A single Callable, object which must accept an array of values and return an (N, 3) or (N, 4) array of colors
  • Colormap(lambda x: np.stack([x, np.sin(x*10), np.cos(x*10)], axis=1))


Usage#

Mapping data to colors#

Call a colormap with an array of values to get an array of RGBA colors, with shape data.shape + (4,). Float values are expected to be normalized to [0, 1]:

import numpy as np
from cmap import Colormap

cm = Colormap("viridis")
data = np.random.random((64, 64))

cm(data)  # float RGBA array, shape (64, 64, 4)
cm(data, bytes=True)  # uint8 RGBA array, shape (64, 64, 4)
cm(0.5)  # a single Color

Values below 0, above 1, and NaN use the colormap's under, over, and bad colors. By default these are the first color, the last color, and transparent:

cm = Colormap("viridis", under="black", over="white", bad="gray")
cm([-0.1, 0.5, 1.2, np.nan], bytes=True)
# array([[  0,   0,   0, 255],
#        [ 32, 144, 140, 255],
#        [255, 255, 255, 255],
#        [128, 128, 128, 255]], dtype=uint8)

Integer arrays are used as indices directly into the colormap's lookup table (LUT). See Colormap.__call__ for details.

Using qualitative colormaps#

Consider a ColorBrewer qualitative colormap from the default catalog with eight color stops

c = Colormap("colorbrewer:set1_8")
c.color_stops

As with all colormaps, the color stop positions are in [0, 1]

ColorStops(
    (0.0, Color((0.8941, 0.102, 0.1098))),
    (0.14285714285714285, Color((0.2157, 0.4941, 0.7216))),
    (0.2857142857142857, Color((0.302, 0.6863, 0.2902))),
    (0.42857142857142855, Color((0.5961, 0.3059, 0.6392))),
    (0.5714285714285714, Color((1.0, 0.498, 0.0))),
    (0.7142857142857142, Color((1.0, 1.0, 0.2))),
    (0.8571428571428571, Color((0.651, 0.3373, 0.1569))),
    (1.0, Color((0.9686, 0.5059, 0.749))),
)

so a floating point value in [0, 1] can be used to map to a color

c(0.2)

which will use nearest neighbor interpolation by default to return the second color exactly

Color((0.2157, 0.4941, 0.7216))

even though the position is in between the second and third color stops.

However, qualitative colormaps are often used to map integer valued or categorical values to colors. The behavior of calling a Colormap depends on the type of the input. Calling a Colormap with an integer

c(1)

indexes directly into the colormap's LUT

Color((0.2157, 0.4941, 0.7216))

which is often a more natural operation.

Cycling through colors#

When using qualitative colormaps to map integer values, sometimes the input domain may be larger than the number of colors in the colormap.

By default, values less than zero

c(-1)

map to the first color

Color((0.8941, 0.102, 0.1098))

and values greater than the number of colors

c(9)

map to the last color

Color((0.9686, 0.5059, 0.749))

This behavior can be customized by providing the under and over colors when initializing a Colormap. Instead, sometimes it is preferable for the mapping to cycle through the color stops.

There is currently no built-in way to do this when calling the Colormap, but it can be done by using the modulo operator on the input value with Colormap.num_colors

c(9 % c.num_colors)

which now maps to the first color

Color((0.8941, 0.102, 0.1098))

This also works well when using an array as input

c(np.arange(16) % c.num_colors)

which returns the cycled RGBA color values in an array output

array([[0.89411765, 0.10196078, 0.10980392, 1.        ],
       [0.21568627, 0.49411765, 0.72156863, 1.        ],
       [0.30196078, 0.68627451, 0.29019608, 1.        ],
       [0.59607843, 0.30588235, 0.63921569, 1.        ],
       [1.        , 0.49803922, 0.        , 1.        ],
       [1.        , 1.        , 0.2       , 1.        ],
       [0.65098039, 0.3372549 , 0.15686275, 1.        ],
       [0.96862745, 0.50588235, 0.74901961, 1.        ],
       [0.89411765, 0.10196078, 0.10980392, 1.        ],
       [0.21568627, 0.49411765, 0.72156863, 1.        ],
       [0.30196078, 0.68627451, 0.29019608, 1.        ],
       [0.59607843, 0.30588235, 0.63921569, 1.        ],
       [1.        , 0.49803922, 0.        , 1.        ],
       [1.        , 1.        , 0.2       , 1.        ],
       [0.65098039, 0.3372549 , 0.15686275, 1.        ],
       [0.96862745, 0.50588235, 0.74901961, 1.        ]])

The behavior of calling a Colormap with an array depends on its dtype. With a floating point dtype, it expects the values to be [0, 1], so the equivalent call to the above is

c(np.linspace(0, 2, 16, endpoint=False) % 1)

which returns the same output array values.

Immutability#

All colormaps are immutable and cannot be modified after instantiation.

Usage with external visualization libraries#

A primary motivation of cmap is to make it easy to use colormaps in external visualization libraries. To that end, cmap.Colormap provides to_<libname>() methods for a number of libraries:

• matplotlib

  Colormap("viridis").to_mpl()  # or to_matplotlib()


  Returns an instance of matplotlib.colors.Colormap.

• napari

  Colormap("viridis").to_napari()


  Returns an instance of napari.utils.colormaps.colormap.Colormap.

• vispy

  Colormap("viridis").to_vispy()


  Returns an instance of vispy.color.colormap.Colormap.

• pygfx

  Colormap("viridis").to_pygfx()


  Returns an instance of pygfx.TextureMap.

• plotly

  Colormap("viridis").to_plotly()


  Returns a list of tuples, where each tuple is a color stop:

  [
      [0.0, 'rgb(68, 1, 84)'],
      [0.00392156862745098, 'rgb(68, 2, 86)'],
      [0.00784313725490196, 'rgb(69, 4, 87)'],
      [0.011764705882352941, 'rgb(69, 5, 89)'],
      ...


• bokeh

  Colormap("viridis").to_bokeh()


  Returns an instance of bokeh.models.mappers.LinearColorMapper

• altair

  Colormap("viridis").to_altair()


  Returns a list of hexadecimal color strings.

• gee

  Colormap("viridis").to_gee()


  Returns a list of hexadecimal color strings (without a # prefix).

• pyqtgraph

  Colormap("viridis").to_pyqtgraph()


  Returns an instance of pyqtgraph.ColorMap

Usage with pydantic#

Colormap can be used as a field type in pydantic models. Fields accept any ColormapLike value. Colormaps from the catalog serialize to their name, and other colormaps serialize to the output of Colormap.as_dict. Either way, the result validates back to an equal colormap.

from pydantic import BaseModel
from cmap import Colormap


class Foo(BaseModel):
    colormap: Colormap


Foo(colormap="viridis").model_dump_json()
# '{"colormap":"bids:viridis"}'

Foo(colormap=["red", "green"]).model_dump_json()
# '{"colormap":{"name":"custom colormap","identifier":"custom_colormap",
#   "category":null,"value":[[0.0,[1.0,0.0,0.0,1]],[1.0,[0.0,0.5019607843137255,0.0,1]]]}}'

This also works in psygnal.EventedModel.

class Foo(BaseModel):
    colormap: Colormap

    class Config:
        json_encoders = {Colormap: Colormap.as_dict}

Rich repr#

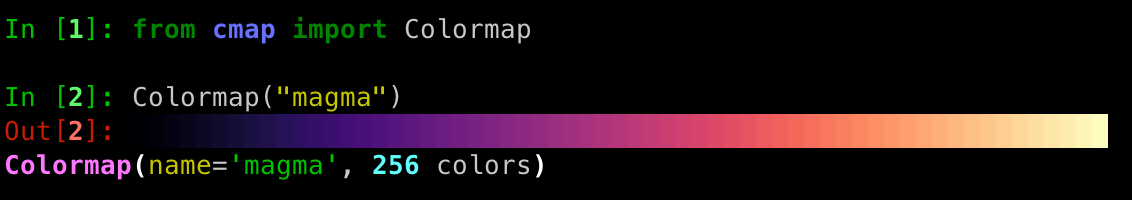

If you use rich pretty printing, Colormap objects have a nice repr that shows the color in the terminal

from rich import pretty

pretty.install()
